Accomplished Vans fuel tank service bulletin.
UPDATE: Originally back in the archives I had built inverted tank setups, however decided to change back to the standard fuel pickup configuration. In the future the tanks can be converted back to inverted easily if required.  Below are the items I had to change.

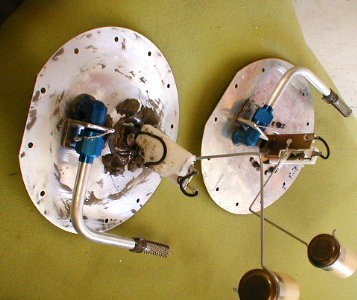

1. Removed flop tube from both tanks and installed AN end caps on the 90 degree AN fitting.
2. Removed the fuel senders from the aft tank spar and relocated them to the access panel, and fabricated  a cover plate for the spar.
3. Installed fuel screen pick supplied by vans.

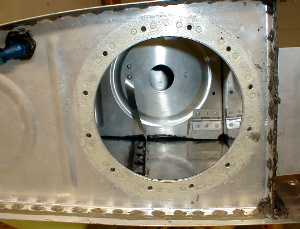

4. Kept the fuel tank access door, see picture rt. tank shown.
