These are the Lt. elevator components primed dimpled and ready for assembly.

1
 Here is the spar doublers and plate nuts coming together.
1

1

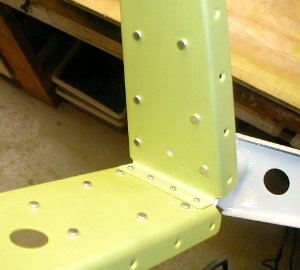

 This is flush head side of the control horn bracket before and after.
1

1


 And the counterbalance ribs attached to the spar.
1

 Notice the clean rivet heads, the trick is  masking tape on the rivet set.
1

 The lt. elevator skeleton complete.

1
