Started the rudder, trimmed final drilled and resized the R915 stiffeners to skin left and right sides.

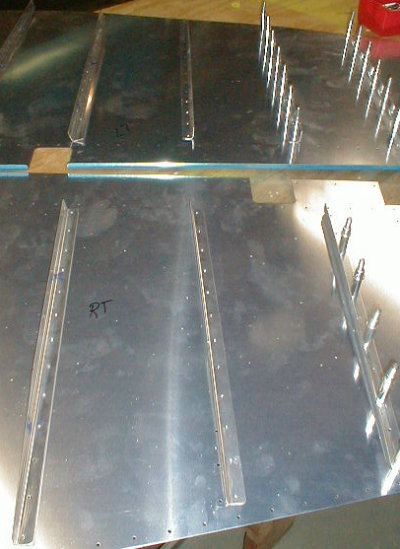

NOTE: When matching the R915 stiffeners to the skin, start on the right side using an uncut  R915 stiffener and match the hole pattern to the skin. Notice the right side 90 degree angle is facing down. After cutting the right side R915 stiffener to size the remaining portion of the R915 stiffener will fit on the left rudder skin with the 90 degree angle facing up.  The end result should be a box configuration. Look close at this pic and see the direction of the angle bends on the R915 stiffeners.
