Accomplished A lot in the last  few weeks with Hannah's help bucking rivets. These pics are not in order of completion.





Final drilled the above brackets.









Riveted the center floor stiffener ends only.



Here is a good shot of the interior paint. I'm painting the interior pieces as I go here before riveting and using the Nason Urethane enamel light gray. The color is very nice.



Lots of tape to protect the paint.







Hannah is helping buck rivets.









Fabricated these bushing/spaces on the milling machine and the lathe, didn't like the look of the AN 960 washers the plans call for, or of the spacers I previously made from some tubing.










Installed the fuel line cover brackets now using sollids. This would be a bear later on l

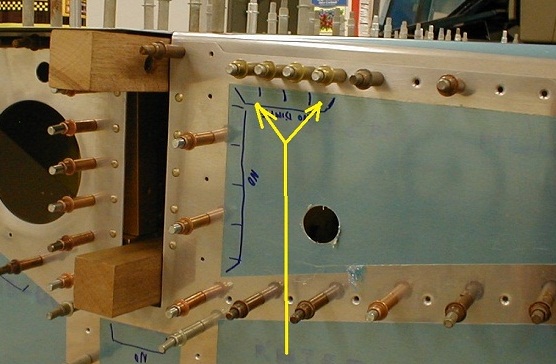

Attached and drilled the bolt holes in the fwd wing attach bracket bracket.



Installed the 10/32 bolts.





Drilled these holes 3/16 for the #10/32's.



More bolts.
