Doing the panel cutouts

Panel done

Panel done ready for paint





Preparing the mapbox cutout

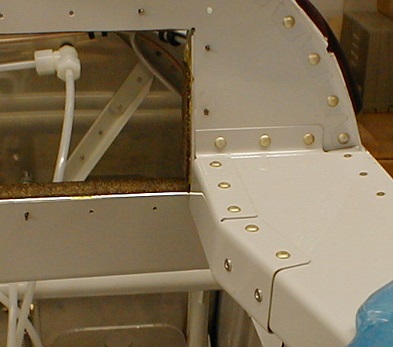

Marking the cut out location of the mapbox. Also attached some cork to the finished angle brackets

Installing the angle brackets


Fabricated doubler

Installed and painted doubler


Painted panel with Nason low gloss interior specific paint.

Bought some CB from spruce

Panel painted and installing labels and CB's.

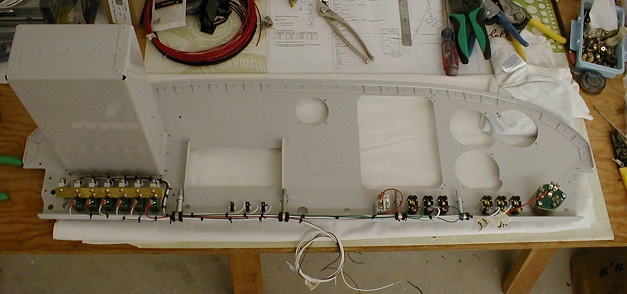

Starting bus and switch wiring

Instrument nut rings, (these are great) and tach cap

Avionics going in

Electricle bus power cable


Behind the panel


Behind the panel

Power cable feed thru's, fabricated from scrap AN fittings.

Hannah  Hannah ops checking the demo seat
