Undersized reamer, elevator horns.

1

Drill guide fabricated on the milling machine.

1

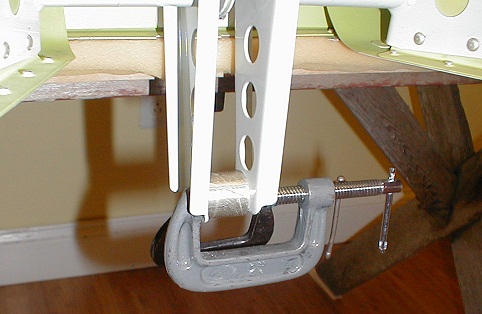

Notice the L angle lengths resting on the steel pins. This is were I leveled the horizontal stab to match the wing incidence. The smart level show the lateral level, should be same as the wing center section spar..

12

Elevator stop was trimmed here allot.

1

1

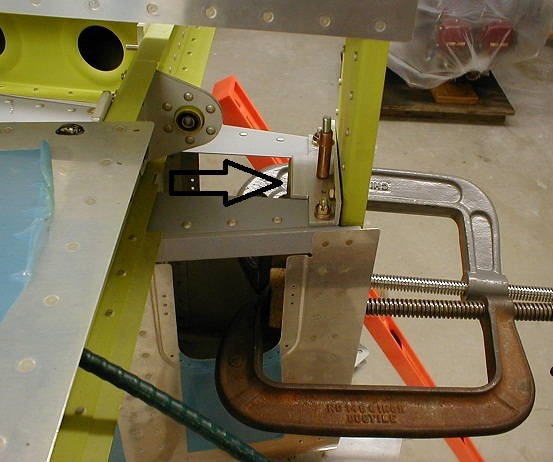

Vert stab spar plate final drilling after it was removed from fuse, for better access.

1

1

These fasteners are only temporary.

1

Verticle stab bolt holes drilled.

1

Proper rudder travel confirmed.

1

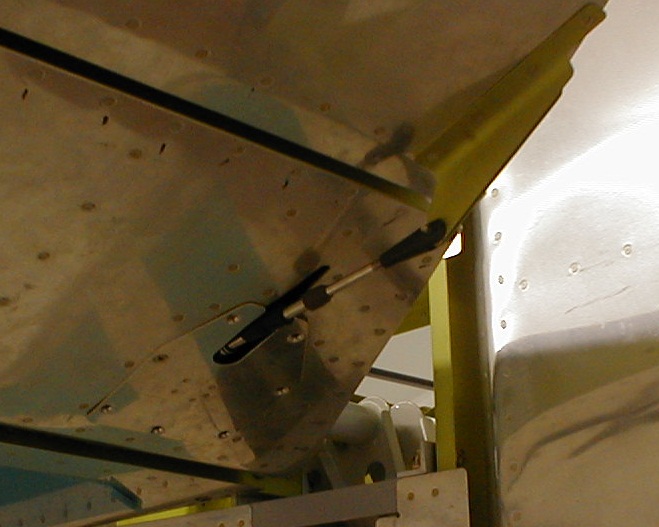

Elevator trim cable rigged.

1

1

Modified the trim cable and installed cover.

1

Fuel valve complete with standoffs fabricated. Also using the lathe, milled down the fuel vents a bit more for less drag, and PRC some screen material as well.

1

Right wing fuel line fabricate, inverted fuel setrup.

1

Fuel vent lline done.

1



1
