fuel pump brackets

Fabricated these bracket's for the EFII fuel pump.


1


fuel pump


Sandwiched some cork as a vibration buffer.

Fuel pump cover

Modified the cover to accommodate the trim cable.



Hannah

Hannah climbed in the back and helped me shoot the aft upper fuse skin.

1

1





Bill and John

Bill Higgans and John Sanazaro flew up in Bill's award winning 6. John's building a nice 7, and is almost ready for phase 1. The RV knowledge base in the garage at the moment is quite high, and I pick there brain often since there ahead.

canopy frame2

Fabricating brackets for the forward fuselage sub panel.



Fwd deck


1


Forward deck

Primed and painted all sub panel Stuff and fuel pump cover.

  1

1

1





roll bar

Started building the roll bar.




roll bar

Here is a good tip I used from Mike Bullock, made a jig using the dimensions measured from the plane minus the attach brackets. The vertical measurement was from the plans. Mike has a very good descriptive sequence on his web site.

roll bar



1




roll bar

roll bar

roll bar




1






1


roll bar

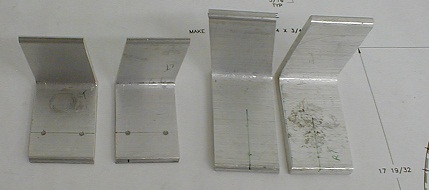

Fabricated the roll bar attach brackets.

1

Some of the material will get trimmed on the aft edge of this piece.

roll bar



roll bar




roll bar

1

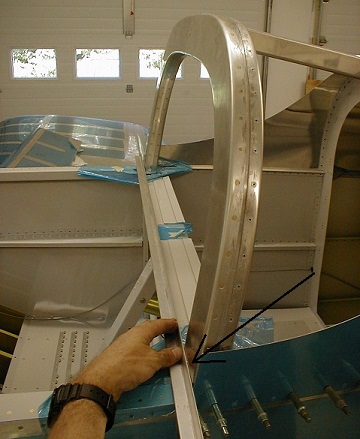

This pic shows the trimmed aft edge as well as the screw and countersink. Also had to trim a bit of the bottom of the roll bar R/H aft, so it could fit snug onto the bracket

bracket roll bar

Used a reamer here for a nice fit for the attach hardware.

roll bar

This bracket is all trimmed up.





rudder pedals

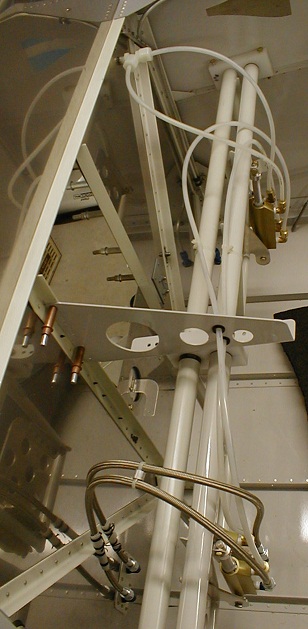

Added some anti chafe here.

rudder pedals

Finished up the brake pedals and hyd lines.
